miniK10 MOUNTING SETS
-

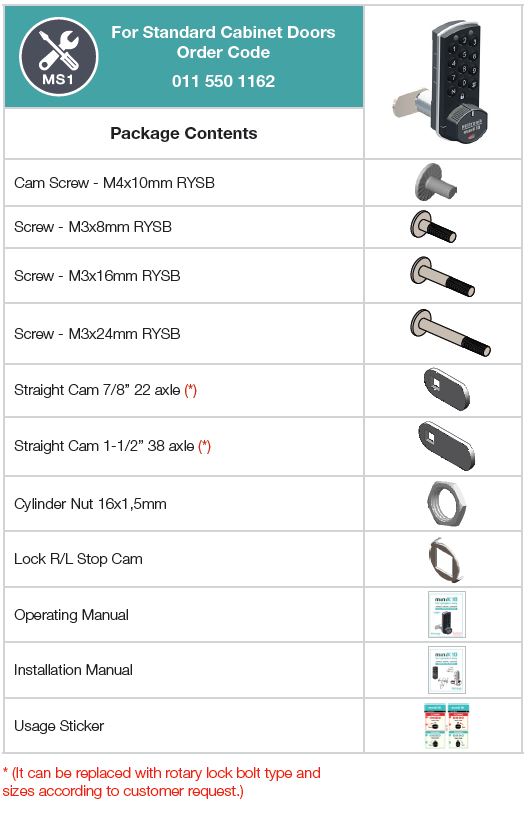

MOUNTING SET 1 (Standard) (For 0.5 - 20mm Doors)
-
MOUNTING SET 2 (Espagnolette 15 axle) (For 12 - 18mm Doors)
-

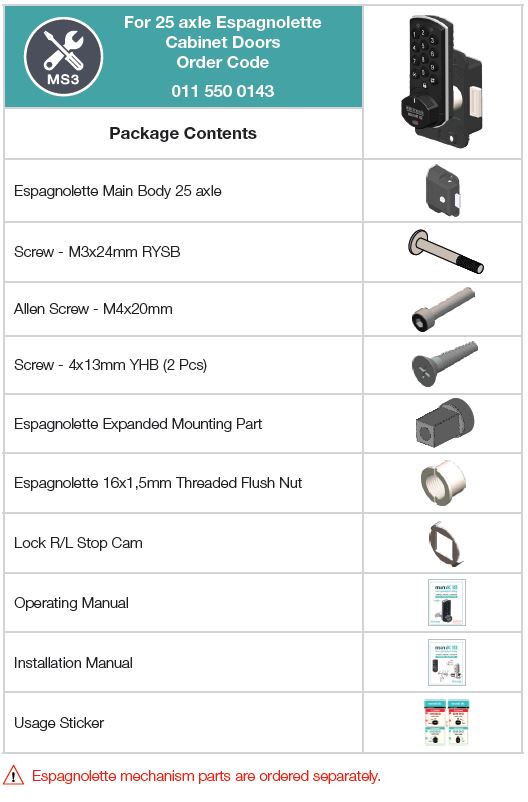

MOUNTING SET 3 (Espagnolette 25 axle) (For 12 - 18mm Doors)
-

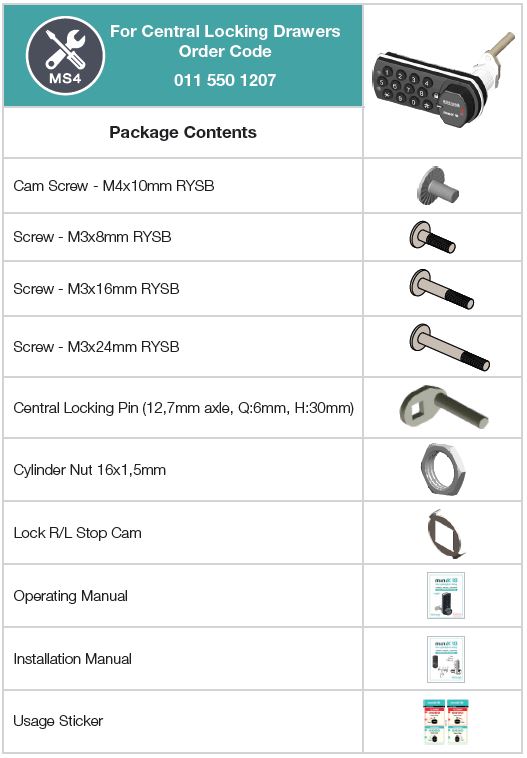

MOUNTING SET 4 (Central Locking) (For 0,5 - 20mm Doors)
-

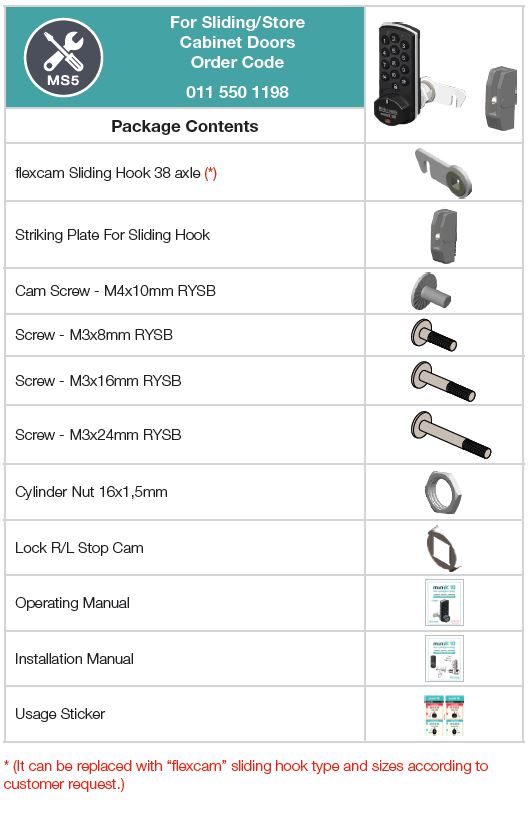

MOUNTING SET 5 (Sliding/Store Door) (For 0,5 - 18mm Doors)
ACCESSORIES
| Straight Cam (7/8’’ aks,1/4’’ offset) 050 038 1218 |
 |
| Strike Plate (34x22x10 mm) and screws (3,5x12mm) 011 550 1137 |
 |
| Adaptor Washer– 5/8” to 3/4” (16mm to 19mm) 050 033 1162 |
 |
| Adaptor Washer– 5/8” to 7/8” (16mm to 22mm) 050 033 1163 |
 |
| Flush Mounting Plate (0,7mm DKP Plate) 050 031 1155 |
 |
| Lock Outside Metal Protector 011 550 1174 |
 |
| Lock Outside Metal Protector 024 010 0058 |
 |
| Proximity Card (without printed) 060 010 1189 |
 |
| Proximity Card (double side printed) 011 680 0570 |
 |
| Proximity Keychain (without printed) 060 010 1191 |
 |
| Proximity Wristband 060 010 1210 |
 |
| Mifare Card (without printed) 060 010 1207 |
 |
| Mifare Card (double side printed) 011 680 0637 |
 |
| Mifare Wristband 060 010 1208 |
 |
